Formula 1 Wing Development

This project documents the development of a Formula 1 front wing: concept ideas, CAD iterations, CFD-driven shape tweaks, and FEA analysis for structural stiffness and load paths. The goal was to maximize downforce for cornering while controlling drag and ensuring structural integrity under peak aerodynamic loads.

Front Wing Design

Back Wing Design

Wing iteration 1

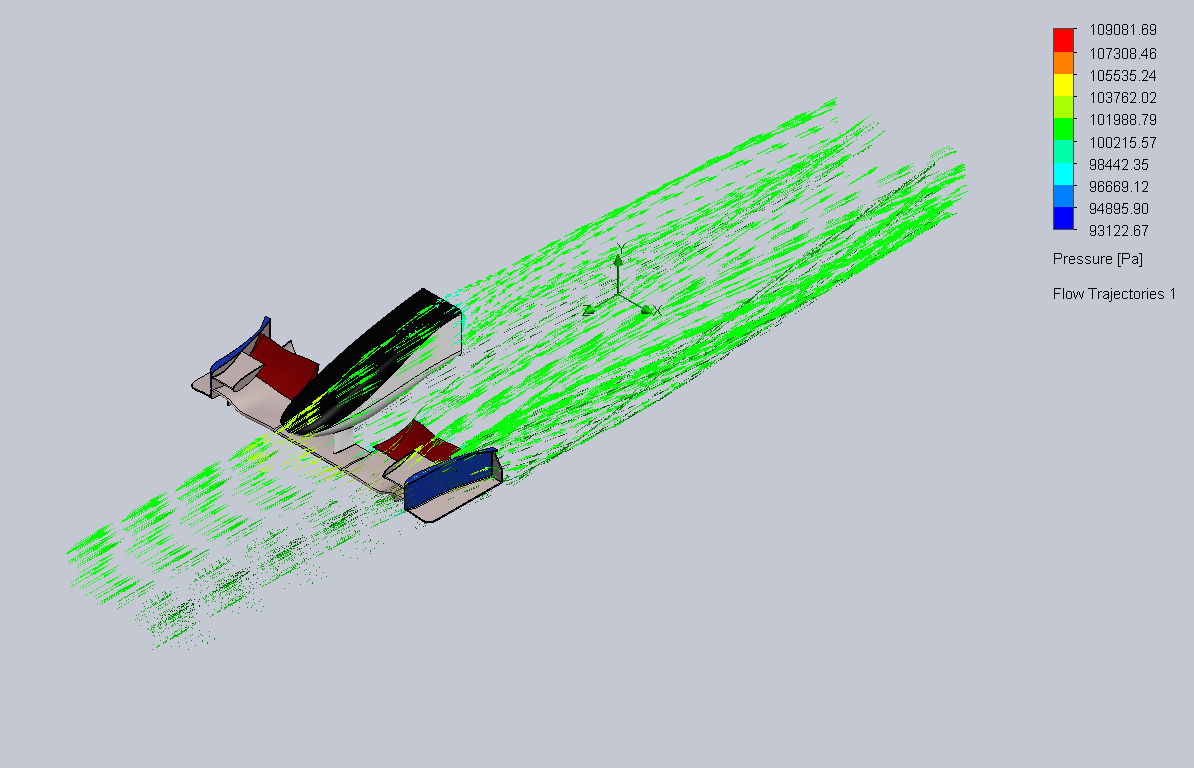

Flow Simulation using Solidworks for front wing
Wing iteration 2

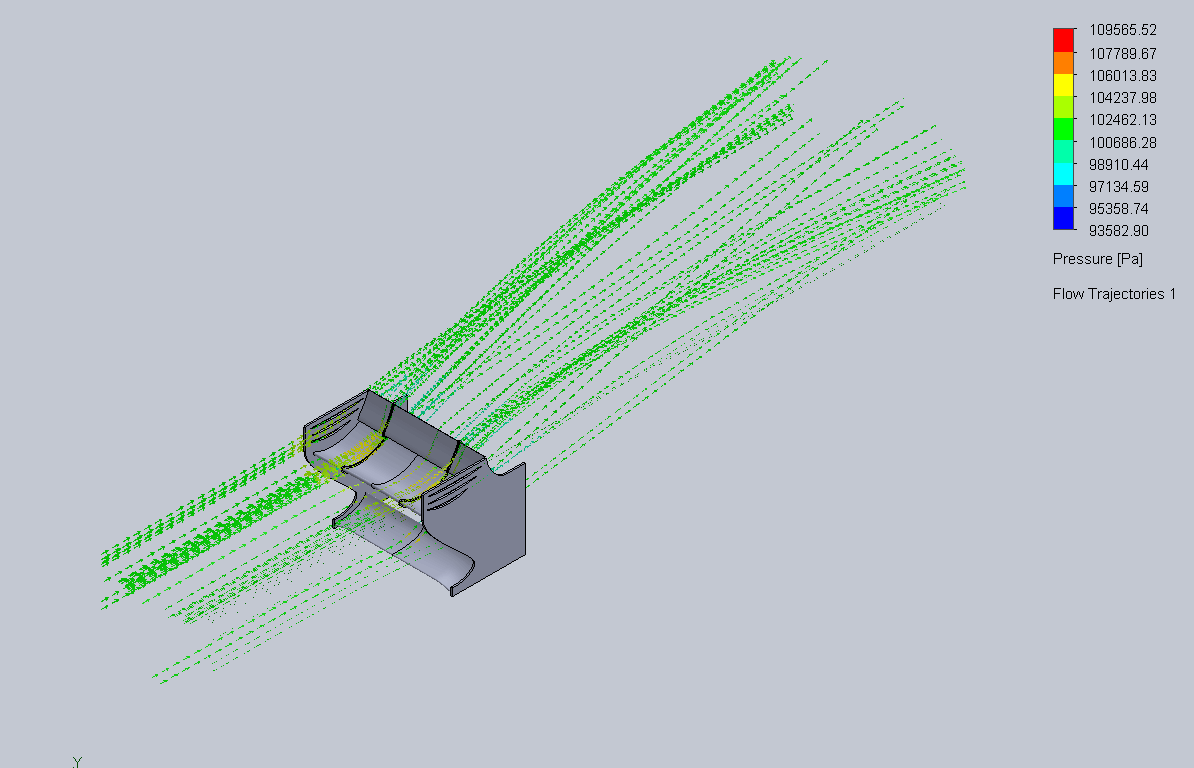

Flow Simulation using Solidworks for back wing

Highlights

• Used Solidworks to develop design based on Williams F1 front and back wings;
• Gained exprience in surface modeling and flow trajectories and flow simulation through solidworks
• Tested multiple iterations and made decisions based on data.

My Commitments

• Same as highlights;
• Designed and tested the front and back wing designs based on popular Formula 1 Car design trends;

Collaborators

  • Just me, heh — Lead Designer
